Axial needle roller and cage assemblies

Category:

Axial needle roller and cage assemblies + thrust washers

Product Description

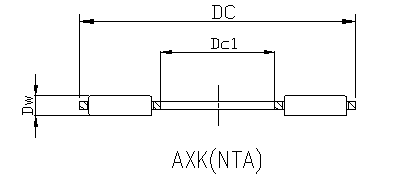

Axial needle roller and cage assemblies
Shaft Diameter (mm)	Bearing Designation	Boundary Dimension (mm)			Basic Load Rating (N)		Limiting Speed (rpm)
Shaft Diameter (mm)	Bearing Designation	Dc1	Dc	Dw	Cr Dynamic	Cor Static	Grease	Oil
4	AXK0414TN	4	14	2	4380	7500	6300	18000
5	AXK0515TN	5	15	2	4680	9100	5900	17000
6	AXK6X14X1.5	6	14	1.5	1900	3900	7600	20000
	AXK6X14X1.5TN1	6	14	1.5	1600	3200	7600	20000
	AXK6X17X2	6	17	2	4500	10200	600	19000
	AXK0619TN1	6	19	2	6100	15400	6100	17600
7	AXK0720	7	20	2	6500	17000	6200	17100
8	AXK0821	8	21	2	6500	17600	5800	16000
9	AXK0922	9	22	2	6800	17800	5800	16000
10	AXK1024	10	24	2	7700	23200	4700	13700
10	AXK10X27X2.5	10	27	2.5	11200	32600	4200	11900
12	AXK1226	12	26	2	7000	20900	4100	11600
12	AXK1226TN1	12	26	2	8000	25200	4100	11600
12.7	NTA-815	12.7	23.8	1.984	7100	18500	4200	12100
12.8	AXK-12.8X23.5	12.8	23.5	2	7200	19000	4200	12000
15	AXK1528	15	28	2	10200	36000	3600	10300
17	AXK1730	17	30	2	10700	39600	3300	9400
17	AXK17X35X2/P5	17	35	2	12600	49300	3100	9000
19	AXK1933	19	33	2	9220	31190	2950	8500
20	AXK2035	20	35	2	12100	48500	2800	8000
21	AXK21X32X2.05	21	32	2.05	3500	9300	2900	8300
21	AXK21X32X2	21	32	2	4100	11400	2900	8300
25	AXK25421/P5	25	42	2	13100	58000	2300	6600
25	AXK2542	25	42	2	13100	58000	2300	6600
22.5	AXK22.5X31.2TN	22.5	31.2	2	7340	23600	2850	8200
24.5	AXK24.5X33.7TN	24.5	33.7	2	7090	23700	2820	8100
28.58	NTA-1828	28.58	44.45	1.984	15900	77000	2100	6100
29	AXK29X50X2	29	50	2	19200	97600	1900	5600
30	AXK30X42X2.5	30	42	2.5	8000	26100	2100	6100
30	AXK3047	30	47	2	14700	69600	2000	5700
31.75	NTA-2031	31.75	49.2	1.984	18800	98600	1900	5500
35	AXK35X49X2	35	49	2	13700	65800	1800	5300
35	AXK3552	35	52	2	16700	8500	1700	5000
38.1	NTA-2435	38.1	55.55	1.984	19600	108700	1600	4700
40	AXK4060	40	60	3	25000	114000	1500	4400
44.45	NTA-2840	44.45	63.5	1.984	22400	134000	1450	4200
45	AXK4565	45	65	3	26100	128300	1400	4000
50	AXK5070	50	70	3	27800	135400	1300	3700
55	AXK5578	55	78	3	34600	185800	1200	3300
57.15	NTA-3648	57.15	76.2	1.984	21400	140200	1100	3200
57.5	AXK 57.5X75X3.15	57.5	75	3.15	26900	130900	1100	3200
60	AXK6085	60	85	3	40300	234400	1100	3000
63.5	NTA-4052	63.5	82.55	1.984	24500	167600	1100	3000
65	AXK6590	65	90	3	40300	244200	1000	2800
75	AXK75100	75	100	4	51000	273500	870	2500
80	AXK80105	80	105	4	51500	286500	830	2400
110	AXK110145	110	145	4	53200	139400	650	1800

Thrust washers

None
