Drawn cup needle roller bearings,Full complement

Category:

Drawn cup needle roller bearings,Full complement

Product Description

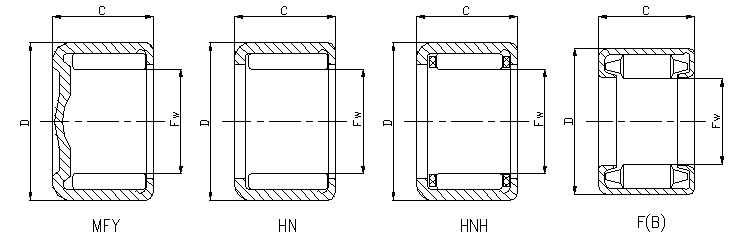

Drawn cup needle roller bearings,Full complement
Shaft Diameter (mm)	Bearing Designation		Boundary Dimension (mm)			Basic Load Rating (N)		Limiting Speed (rpm)
Shaft Diameter (mm)	Open end	Close end	Fw	D	C	Cr Dynamic	Cor Static	Grease	Oil
6.35	B45		6.35	11.13	7.92	3100	2990	7500	12000
7.93	M571		7.93	12.7	11.13	3500	3800	6200	9500
17.28	B98		14.288	19.05	12.7	8800	13000	4100	5800
9	HN9X13X8		9	13	8	5300	7300	/	/
12	HN1210		12	16	10	8000	13400	/	/
12	HNH1212TN		12	18	10.7	10700	14500	/	/
13	HN13X18X9.3		13	18	9.3	8300	12000	/	/
14	HN142009		14	20	9	8400	12100	/	/
15	HN152007		15	20	7	6400	9900	/	/
15	HN1516		12	21	16	16000	28000	/	/
16	HN16X22X8.5		16	22	8.5	8500	13000	/	/
20	HN2020		20	26	20	23000	49000	/	/
10		MFY10X15X9.4	10	15	9.4	6400	9300	/	/
		MFY10X16X9.4	10	16	9.4	6900	8400	/	/
		MFY101610	10	16	10	7200	8500	/	/
11.5		MFY11.5X18X12	11.5	18	12	10500	14000	/	/
14		MFY14X20X10.8	14	20	10.8	9900	14600	/	/
