Product Description

Elastic bearings

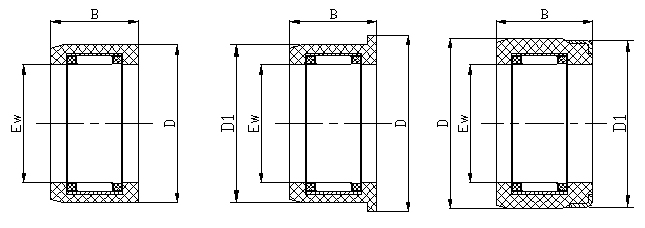

Shaft Diameter (mm)	Bearing Designation	Boundary Dimension (mm)				Basic Load Rating (N)		N.m
Shaft Diameter (mm)	Bearing Designation	Fw	D	D1	B	Cr Dynamic	Cor Static	N.m
17	TXB-1720	17	32		20	6900	9500	<0.15
17	TXB-1720.5	17	40	39.8	20.5	7950	11300	<0.15
19	TXB-1919	19	36		19	5500	7600	<0.15
20	TXB-2019	20	36.5	36	19	6140	9640	<0.15
20	TXB-2018	20	38	35	18	7500	11200	<0.15
24	TXB24X34X18.5	24	34		18.5	7200	8900	<0.15
25.25	TXB25.2	25.25	40.8		17	7500	12000	<0.15
25.4	TXB25.4X18	25.4	33.5	33.5	18	7500	12000	<0.15
	TXB25.4	25.4	36.8	33.8	19	7500	12000	<0.15
	TXB25.4.A	25.4	33.8		19	7500	12000	<0.15
27	TXB2720	27	38	35	22	9100	16000	<0.15
28	TXB2824	28	49.5	48.9	24	7000	12000	<0.15
28	TXB2821	28	42	39	21	7700	12700	<0.15
30	TXB3022	30	38.7	38.35	22	9500	17300	<0.15
	TXB3018	30	39		18.5	7224	12000	<0.15
	TXB3019	30	39.3		19	7224	12130	<0.15
	TXB3018.5	30	42	39	18.5	7224	12130	<0.15
31.8	TXB3226	31.8	44	43.5	26	15000	27000	<0.15

None
