Product Description

Drawn Cup Roller Clutches bearing

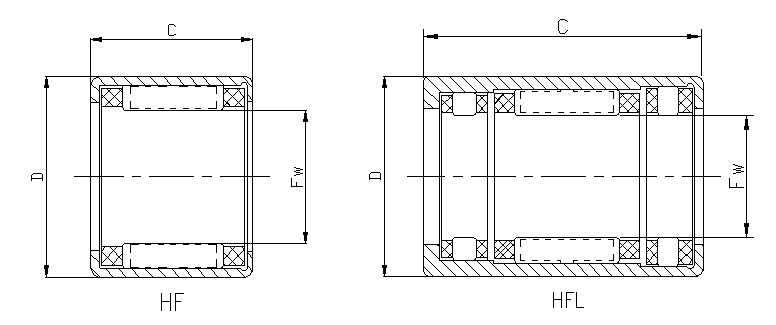

Shaft Diameter (mm)	Bearing Designation	Boundary Dimension (mm)			N.m	Limiting Speed (rpm)
Shaft Diameter (mm)	Bearing Designation	Fw	D	C	N.m		Oil
6	HF0612	6	10	12	1.76	20000	13000
8	HF0812	8	12	12	3.15	16000	11000
8	HFL0822	8	12	22	3.15	16000	11000
10	HF1012	10	14	12	5.3	14000	11000
10	HFL1022	10	14	22	5.3	14000	11000
12	HF1216	12	18	16	12.2	10000	7000
12	HFL1226	12	18	26	12.2	10000	7000
14	HF1416	14	20	16	17.3	8500	7000
16	HF1616	16	22	16	20.5	8500	7000
16	HFL12224	16	22	24	20.5	8500	7000
18	HF1816	18	24	16	24.1	7000	7000
20	HF2012	20	26	12	17	6500	6500
20	HF2016	20	26	16	28.5	6500	6500
25	HF2520	25	32	20	66	5000	5000
30	HF3016	30	37	16	70	4000	4000
30	HF3020	30	37	20	90	4000	4000
35	HF3520	35	42	20	121	3700	3700
